Better parts in less time.
Increasing the efficiency of your workflow leads to better, more predictable outcomes. Pro Cure optimizes the post-curing step for clinicians to offer the best output in the shortest time, all at the touch of a button.
Powerful
Pro Cure is designed for the high-throughput demands of modern clinics and labs.
Easy
Simply select the resin you printed with and Pro Cure handles the rest with a single touch.
Future-Proof
Frequently updated curing profiles mean that you’re always operating at capacity.
Ready. Set. Cure

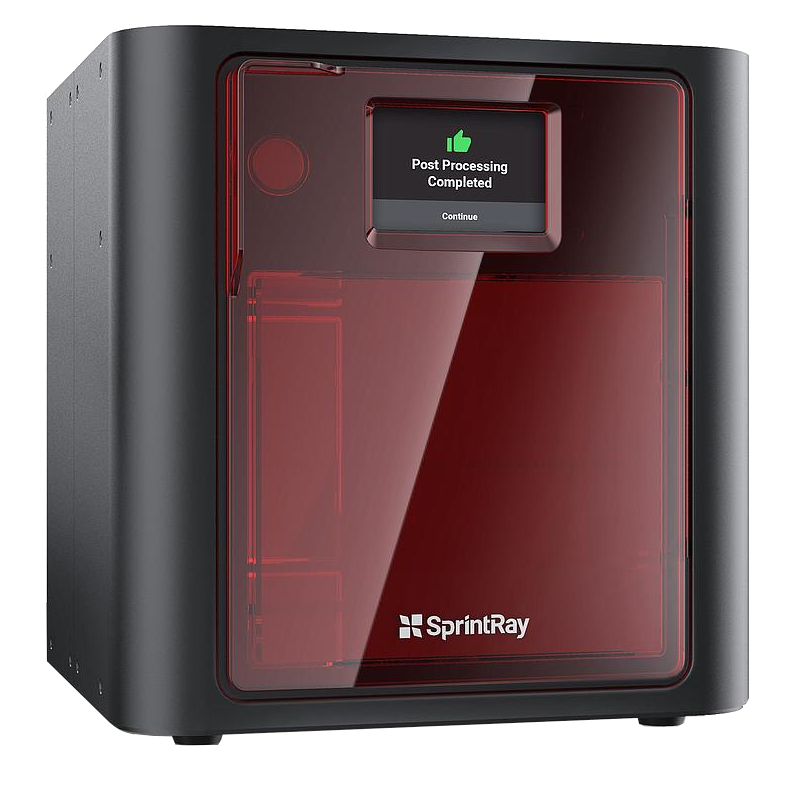

A 3.5” touch-screen programmed with a range of 1-touch profiles for most dental 3D printing resins.
Surprisingly Simple, Seriously Powerful.
An array of high-powered LEDs and a convection heating chamber deliver better parts in less time.
Powerful 405nm LEDs
Pro Cure distributes 90 watts of curing power across 10 sets of high-output LEDs and omni-directional reflective surfaces for best-in-class curing speed.
Convection Heating Chamber
At the heart of Pro Cure is a sensor-controlled convection heating chamber to create the perfect environment for rapid, thorough curing.
Post-processing made easy.
Rapid & Thorough Curing
With a 90-watt LED array, sensor-controlled convection heating, and omni-directional reflective surfaces, Pro Cure maximizes cross-linking and the mechanical properties of your prints with best-in-class speed.
Unmatched Convenience
Pro Cure’s 3.5” touch-screen comes programmed with a range of 1-touch settings. Compatibility with most dental 3D printing resins and a 30-arch capacity help SprintRay Pro Cure take the work (and the guesswork) out of post-processing.
Easy to Own and Maintain
The USB interface of Pro Cure allows you to easily add new curing profiles as materials are released. Along with user-replaceable LEDs and solid aluminum panel construction, Pro Cure is dependable and convenient.
Technical Specification
| Curing Envelope | 15.2 x 17.7 x 28 cm 6 x 7 x 11 in |
|---|---|
| Curing Chamber | Convection heating Digital thermostat 360° reflective interior |
| System Controls | Microcontroller with upgradable firmware |
| Maximum LED Power | 90 watts |
| Dimensions | 28 x 28 x 28 cm 11 x 11 x 11 in |
| Shipping Dimensions | 38 x 38 x 38 cm 15 x 15 x 15 in |
| Light Source | 405nm LED arrays User replaceable LED arrays |
|---|---|
| User Controls | 3.5″ color touch-screen Pre-defined presets Custom profiles |
| Connectivity | Wireless via Pro 3D Printer Wired via USB |
| Power Requirements | 110–240v |
| Weight | 7kg 15 Lbs |
| Shipping Weight | 9 kg 20 Lbs |
